RELAY 208

Customers pictures

Difficulty Level: 2
DC voltage polarity knowledge

Technical Manual

Relay 208

ApplicationNotes

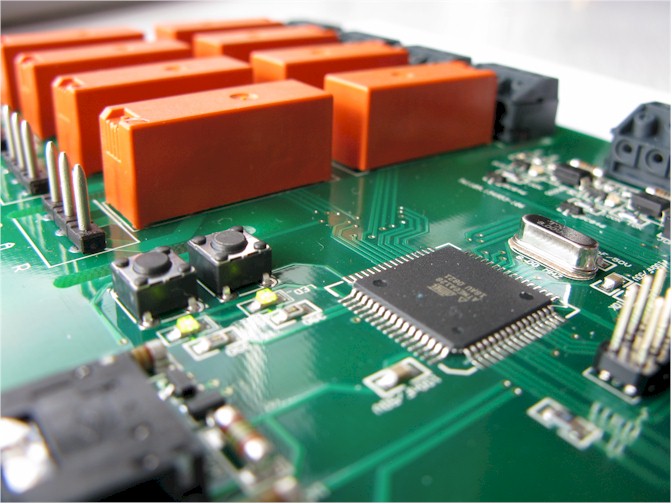

8-channel remote controlled relay board controlling curtains, lights, screens, motors, lifts, garagedoors, etc.

• 12 vdc/vac, 24 vdc/vac, 48 vdc/vac, 115 vac, 230 vac

• 2 pcs independent IR receiver inputs and 2 pcs RS232 commports - Control from computer or multiple rooms

• B&O remote controlled - Optimized for Beo4, Beo5 and Beo6 remote control

• Logitech remote controlled - Can be controlled from a Logitech (B&O light codes)

• BeoSystem Cinema/Theater Detector - Simulates BeoLiving behaviour when Cinema mode is entered

• Digital inputs - Open/close all curtains by a switch/contact/relay, etc.

• Onboard switches for test/programming

• RS232/RS485 controlled - Can be controlled from standard or industrial computer/controller.

• Can also be used as a communication-converter between 2 products. (NOTE: Maximum baudrate 38400 bps - LinTronic must add the required commands to the firmware)

• BootLoader / firmware updater - We offer customized firmware - tell us what you need

• Industrial polycarbonat cabinet, screws and wire-plugs included

Optimized for BEO5
Very nice control features when controlled from a BEO5. You may easily configure your BEO5 macros to control each of the 8 relays individually On, Off, Toggle, or automatic timercontrolled 1-30 seconds.

Hit and run
Activate a relay and it will stay On untill you turn it off, OR activate a relay and it will automatically turn off after an individual programmable time ranging from 4 ms to 24 hours, which makes it perfect for automatically timed control.

Controlling garagedoor or curtains from the Iphone (via /Masterlink Gateway)

Thanks a lot for the great support; fast response times, great advise and the assurance that it will work and a great result! This kind of service is what makes a great product!

Read more customers feedbacks
